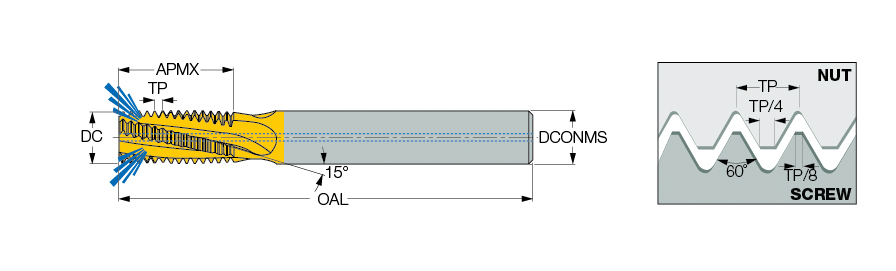

| Thread Pitch (TP) | 1.411 mm | Flute Helix Angle (FHA) | 15 Degrees |
| Threads per Inch (TPI) | 18 | Cutting Edge Material | Carbide |
| Thread Standard | UNF |UNEF |THFT | | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 0.472″ | Series/List # | MTB |
| Cutting Diameter (DC) | 0.445″ | Measurement Type | Inch |
| Functional Length (LF) | 39 mm | Grade | IC908 |
| Overall Length (OAL) | 3.307″ | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 4 | Depth of Cut Maximum (APMX) | 1.028″ |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Left Hand|Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | UN60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features

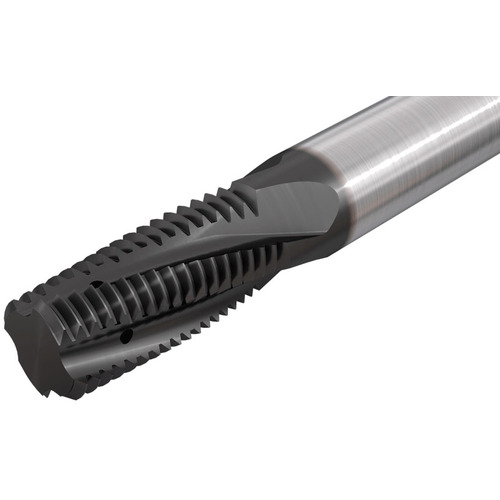

| Family Description | Solid carbide threading endmills with coolant holes located in the flutes for internal UN thread profiles. | Country of Origin | Israel |
