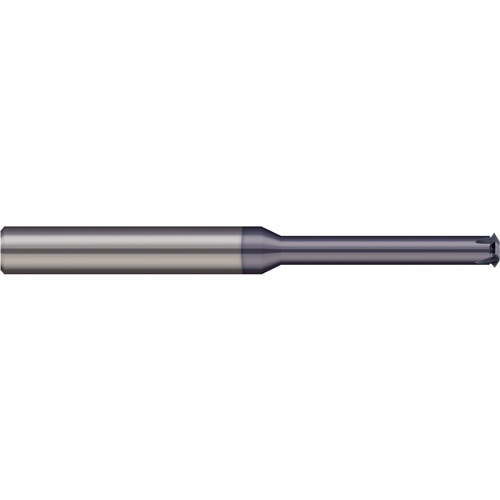

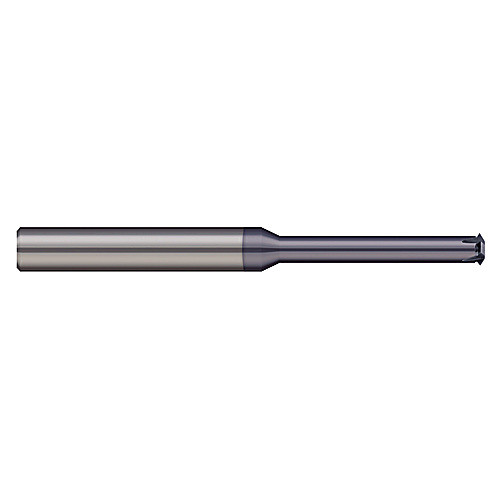

TM-250-24X .2400 × 3-1/2 OAL 4 Flute Thread Mill - AlTiN
Thread Mill; #16 - 48 ; 5/16″ Shank Dia. × 3-1/2″ OAL ; Carbide ; AlTiN
| Thread Size | #16 | Coating | AlTiN |
| Threads per Inch (TPI) | 48 | Threads per Inch Minimum (TPIN) | 16 |
| Thread Standard | UN | Threads per Inch Maximum (TPIX) | 48 |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.24″ | Flute Type | Single Cut |
| Functional Length (LF) | 0.055″ | Measurement Type | Inch |
| Overall Length (OAL) | 3-1/2″ | Tool Type | Solid Carbide Thread Mills |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
2.11000
Package Width
.51200
Package Height
.51200
Package Weight
0.096
