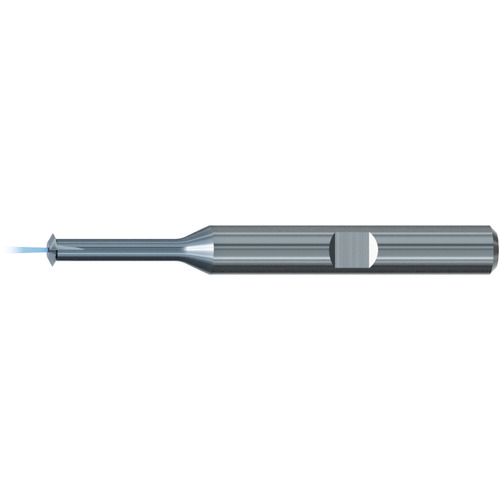

Thread Mill; 1/2″ - 13 × 1/2″ Shank Dia. × 3-5/8″ OAL ; Carbide ; TiCN ; Series A504524
Thread Mill; 1/2″ - 13 | 20 ; 1/2″ Shank Dia. × 3-5/8″ OAL ; Carbide ; TiCN ; Series GFS83106
| Thread Size | 1/2″ | Coating | TiCN |
| Threads per Inch (TPI) | 13 | 20 | Application | | External Thread Milling | Internal Thread Milling | |
| Thread Diameter Size (TDZ) | 1/2″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Thread Standard | UNC | UNF | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Flute Type | Straight |
| Cutting Diameter (DC) | 0.409″ | Series/List # | GFS83106 |
| Overall Length (OAL) | 3-5/8″ | Length Group | 3xD |
| Flute Count (NOF) | 5 | Tool Type | Thread Mill |
| Coolant Supply Property (CSP) | Coolant Thru | Depth of Cut Maximum (APMX) | 1-1/2″ |
| Shank Type | Weldon | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Remarks | • Single plane solid carbide circular thread mill. • One tool can thread more than one thread size and pitch. • Full bottoming threads to within 1 pitch • Eliminate the need for multiple tool holder pockets | Country of Origin | Germany |
Shipping Info
Package Weight
0.04
