MTECSH 0375C10 1.75ISO IC903

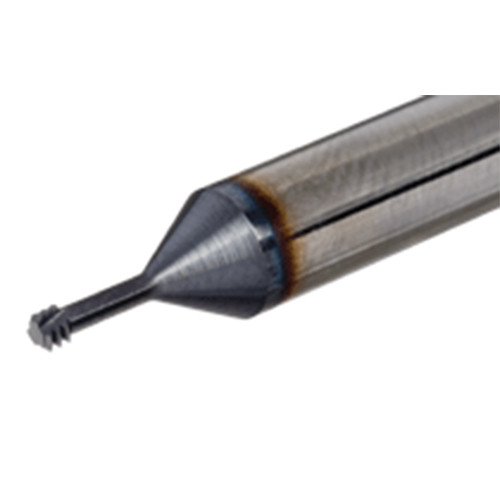

Thread Mill; M12 × 1.75 mm ; 3/8″ Shank Dia. × 3″ OAL ; Carbide ; AlTiN ; IC903 ; Series MTB
| Thread Size | M12 | Cutting Edge Material | Carbide |
| Thread Pitch (TP) | 1.75 mm | Cutting Position | Internal |
| Thread Standard | THFT | | Usable Length (LU) | 1.02″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Series/List # | MTB |
| Cutting Diameter (DC) | 0.354″ | Measurement Type | Inch |
| Functional Length (LF) | 39 mm | Grade | IC903 |
| Overall Length (OAL) | 3″ | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Left Hand|Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | AlTiN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | M60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Small diameter short left-hand (CNC code M04) solid carbide ISO profile internal threading endmills. Used for hardened steel. High cutting speeds, low cutting forces due to the short contact resulting in accurate and parallel thread. | Country of Origin | Israel |
Shipping Info
Package Weight
0.154
