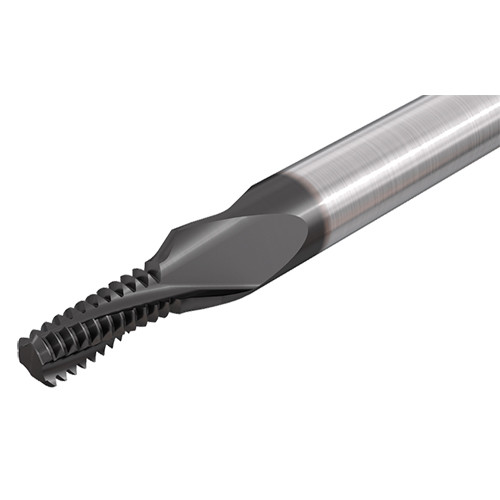

MTEC 0250C07 16UN IC908
Thread Mill; 3/8″ ; 1/4″ Shank Dia. × 2-1/2″ OAL ; Carbide ; TiAlN ; IC908 ; Series MTB
| Thread Size | 3/8″ | Cutting Edge Material | Carbide |
| Thread Standard | UNC |THFT | | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Series/List # | MTB |
| Cutting Diameter (DC) | 0.24″ | Measurement Type | Inch |
| Functional Length (LF) | 39 mm | Grade | IC908 |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 3 | Depth of Cut Maximum (APMX) | 0.7″ |
| Shank Type | Round | Cutting Direction (HAND) | Left Hand|Right Hand |
| Coating | TiAlN | Body Material | Carbide |
| Application | | Internal Thread Milling | | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | UN60 |
| Flute Helix Angle (FHA) | 15 Degrees |
Product Features
| Family Description | Solid carbide threading endmills used for internal UN thread profile. | Country of Origin | Israel |
Shipping Info
Package Weight
0.059
