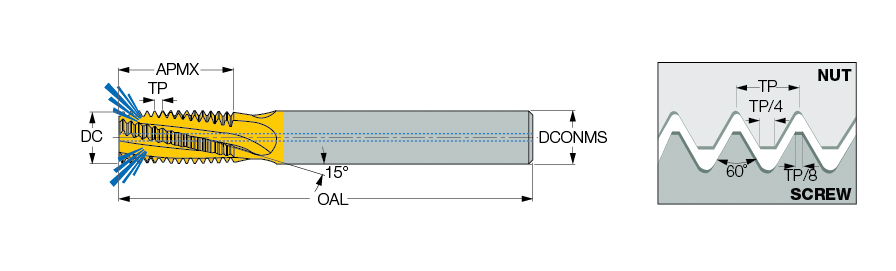

MTECZ 08067C16 16UN IC908
Thread Mill; 3/8 × 1.588 mm - 16 Threads/" ; 8 mm Shank Dia. × 64 mm OAL ; Carbide ; TiAlN ; IC908 ; Series MTB
| Thread Size | 3/8 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 1.588 mm | Flute Helix Angle (FHA) | 15 Degrees |
| Threads per Inch (TPI) | 16 Threads/" | Cutting Edge Material | Carbide |
| Thread Standard | UNC |THFT | | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Series/List # | MTB |
| Cutting Diameter (DC) | 6.7 mm | Measurement Type | Metric |
| Functional Length (LF) | 39 mm | Grade | IC908 |
| Overall Length (OAL) | 64 mm | Tool Type | Solid Carbide Thread Mills |
| Flute Count (NOF) | 3 | Depth of Cut Maximum (APMX) | 16.7 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Left Hand|Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | UN60 |
Product Features
| Family Description | Solid carbide threading endmills with coolant holes located in the flutes for internal UN thread profiles. | Country of Origin | Israel |
Shipping Info
Package Weight
0.099
