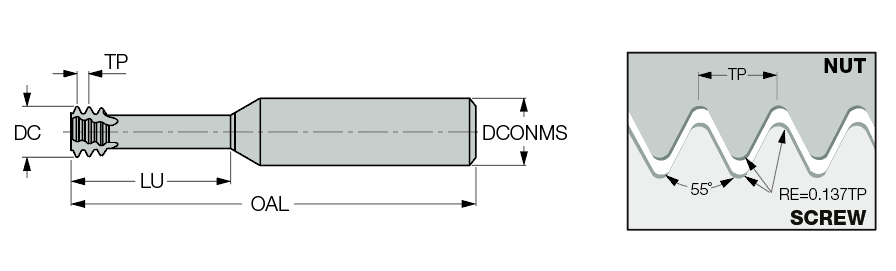

| Threads per Inch (TPI) | 14 | Cutting Position | External |
| Thread Standard | BSP |THFT | | Usable Length (LU) | 37 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Series/List # | MTB |
| Cutting Diameter (DC) | 12 mm | Measurement Type | Metric |
| Functional Length (LF) | 39 mm | Grade | IC908 |
| Overall Length (OAL) | 84 mm | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 4 | Depth of Cut Maximum (APMX) | 4.72 mm |
| Shank Type | Round | Cutting Direction (HAND) | Left Hand|Right Hand |
| Coating | TiAlN | Body Material | Carbide |
| Application | | External Thread Milling | Internal Thread Milling | | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | WH55 |
| Cutting Edge Material | Carbide |
Product Features

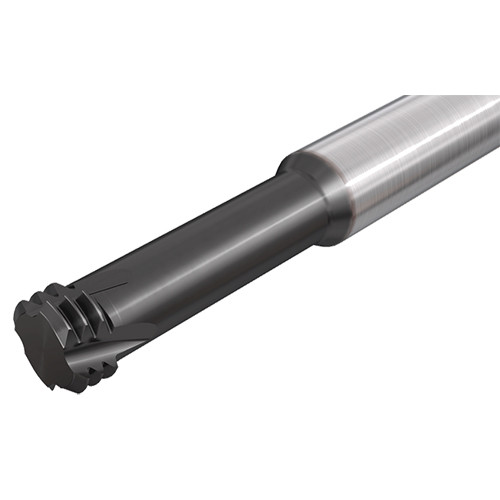

| Family Description | Short solid carbide threading endmills for internal or external BSP and BSF thread profiles. | Country of Origin | Israel |
| Remarks | Internal & External tolerance: ISO 228-1 - Medium class |
Shipping Info
Package Weight
0.271
