743 3/8 SE 4F 4OALR.060

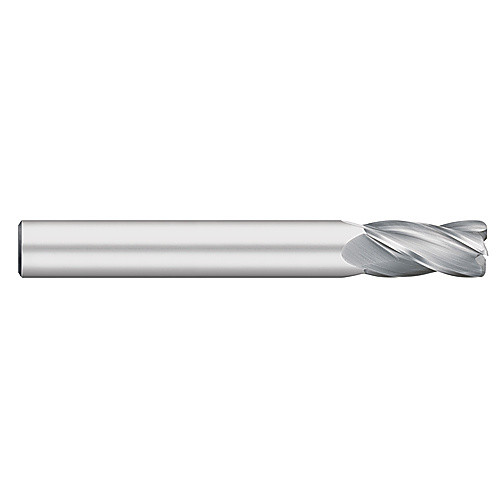

SQ End Mill; 3/8″ Dia. × 1″ LOC × 3/8″ Shank Dia. × 4″ OAL ; 0.06″ RE ; 4 FL ; 1″ LBS ; Carbide ; Uncoated
| Cutting Diameter (DC) | 3/8″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Usable Length (LU) | 1″ |
| Depth of Cut Maximum (APMX) | 1″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 4″ | Decimal Equivalent | 0.375″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | Uncoated | Corner Radius (RE) / Chamfer Width (CHW) | 0.06″ |
| Flute Count (NOF) | 4 | Center Cutting | Yes |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.215
