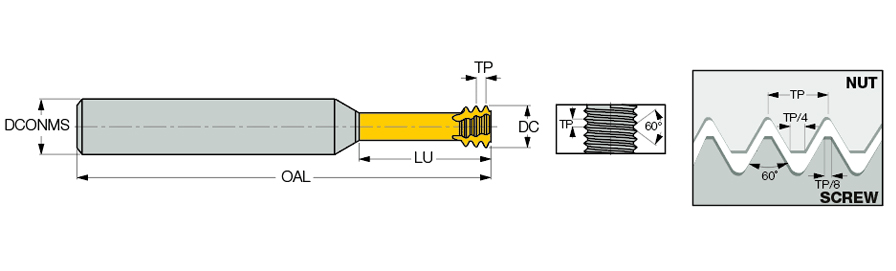

| Thread Size | 4 | Cutting Edge Material | Carbide |
| Thread Pitch (TP) | 0.635 mm | Cutting Position | Internal |
| Threads per Inch (TPI) | 40 | Usable Length (LU) | 8 mm |
| Thread Standard | UNC |THFT | | Series/List # | MTB |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Measurement Type | Metric |
| Cutting Diameter (DC) | 2.1 mm | Grade | IC903 |
| Functional Length (LF) | 39 mm | Tool Type | Solid carbide thread mills |
| Overall Length (OAL) | 58 mm | Depth of Cut Maximum (APMX) | 1.63 mm |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Left Hand|Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | AlTiN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | UN60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features

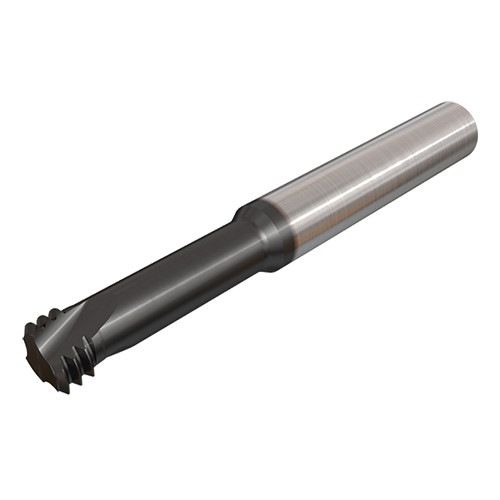

| Family Description | Small diameter short left-hand (CNC code M04) solid carbide UN profile threading endmills. Used for hardened steel. High cutting speeds, low cutting forces due to the short threading contact resulting in accurate and parallel thread. | Country of Origin | Israel |
Shipping Info
Package Weight
0.051
