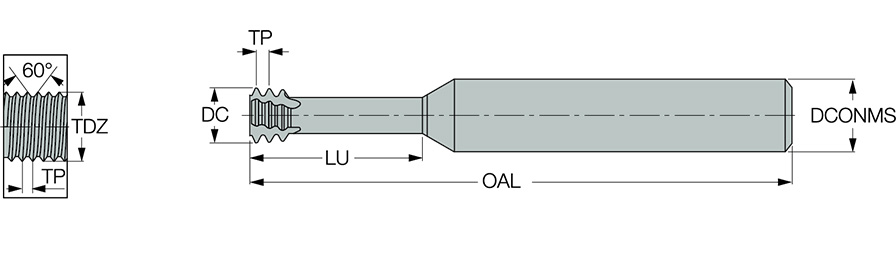

MTECSH 0250C49 0.7ISO IC903
| Thread Size | M4 | Coating | TiAlN |
| Thread Pitch (TP) | 0.7 mm | Application | MILL THREAD SOLID CARBIDE |
| Thread Standard | ISO | Applicable Material | Steel|Stainless Steel|Hard Materials|Hi-Temp Alloys |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.122″ | Cutting Position | Internal |
| Functional Length (LF) | 0.49″ | Series/List # | MTB |
| Overall Length (OAL) | 2-1/2″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Grade | IC903 |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | Solid Carbide Thread Mill |
| Shank Type | Round | Cutting Direction (HAND) | Left Hand|Right Hand |
Product Features
| Family Description | Small diameter short left-hand (CNC code M04) solid carbide ISO profile internal threading endmills. Used for hardened steel. High cutting speeds, low cutting forces due to the short contact resulting in accurate and parallel thread. | Country of Origin | Israel |
Shipping Info
Package Weight
0.075
