MTECS 0250C31 40UN IC908

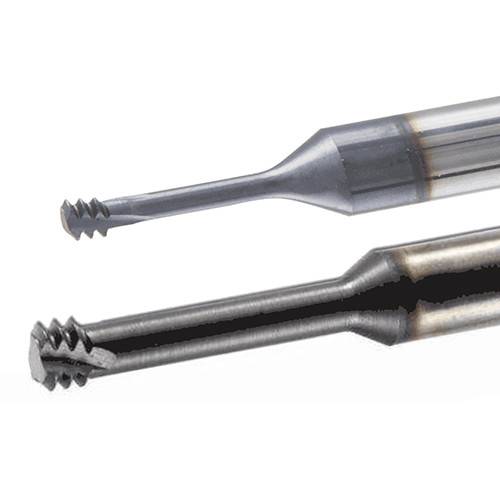

Thread Mill; 4 ; 1/4″ Shank Dia. × 2-1/2″ OAL ; Carbide ; TiAlN ; IC908 ; Series MTB
| Thread Size | 4 | Cutting Edge Material | Carbide |
| Thread Standard | UNC |THFT | | Cutting Position | Internal |

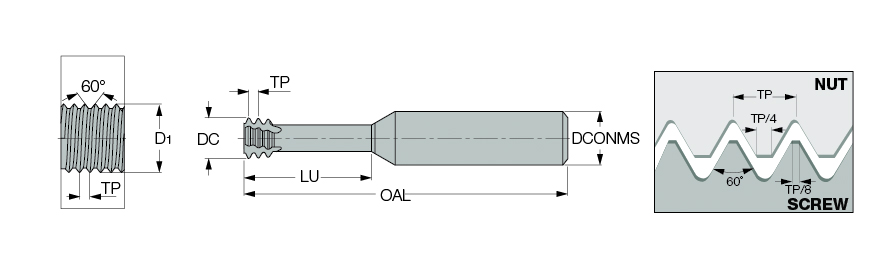

| Connection Diameter Machine Side (DCONMS) | 1/4″ | Usable Length (LU) | 0.31″ |
| Cutting Diameter (DC) | 0.083″ | Series/List # | MTB |
| Functional Length (LF) | 39 mm | Measurement Type | Inch |
| Overall Length (OAL) | 2-1/2″ | Grade | IC908 |
| Flute Count (NOF) | 3 | Tool Type | Solid carbide thread mills |
| Shank Type | Round | Cutting Direction (HAND) | Left Hand|Right Hand |
| Coating | TiAlN | Body Material | Carbide |
| Application | | Internal Thread Milling | | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | UN60 |
Product Features
| Family Description | Small diameter short solid carbide UN profile threading mills. High cutting speeds, short cycle time, low cutting forces due to the short threading contact resulting in accurate and parallel thread. | Country of Origin | Israel |
Shipping Info
Package Weight
0.061
