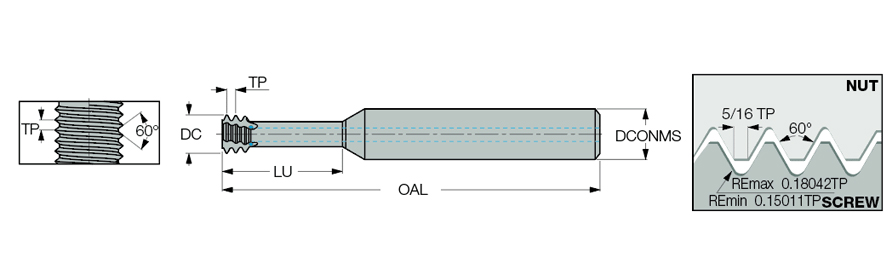

MTECS 08069C24 16UNJ IC708
| Thread Size | 16 | Shank Type | Round |
| Thread Pitch (TP) | 2 mm | Coating | AlTiCCrSiN |
| Threads per Inch (TPI) | 16 | Application | MILL THREAD SOLID CARBIDE |
| Thread Standard | ISO | Applicable Material | Steel|Stainless Steel|Cast Iron|Hard Materials|Non-Ferrous Metals|Hi-Temp Alloys |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 6.9 mm | Cutting Position | Internal |
| Functional Length (LF) | 24 mm | Series/List # | MTB |
| Overall Length (OAL) | 64 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Grade | IC708 |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Left Hand|Right Hand |
Product Features
| Family Description | Small diameter short solid carbide UNJ-type profile threading endmills with coolant holes directed to the cutting edges. Used for internal J-type thread length of up to 2.5xD in the aerospace industry and for other applications. | Country of Origin | IL |
Shipping Info
Package Weight
.0220
