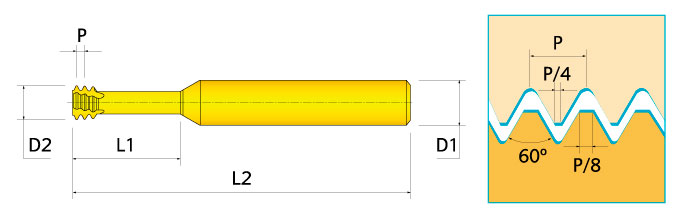

46Y-56UNR6RM040 IN2005
Thread Mill; #3 - 56 × 1/4″ Shank Dia. × 2-1/2″ OAL ; TiAlN IN2005
| Thread Size | 3 | Application | | External Thread Milling | Internal Thread Milling | |
| Thread Pitch (TP) | 2 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Threads per Inch (TPI) | 56 | Cutting Edge Material | Carbide |
| Thread Standard | ISO | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Usable Length (LU) | 0.17″ |
| Cutting Diameter (DC) | 0.065 | Series/List # | MTB |
| Functional Length (LF) | 39 mm | Measurement Type | Inch |
| Overall Length (OAL) | 2-1/2″ | Grade | IN2005 |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Left Hand|Right Hand |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Steel |
| Coating | TiAlN |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.066
