47Y-14NTS6RB230 IN2005

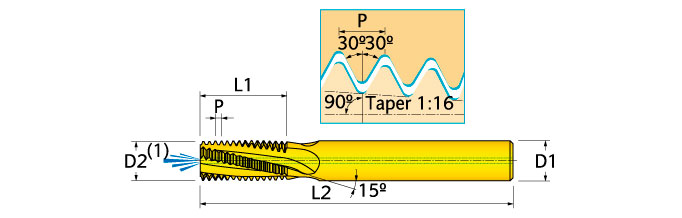

Thread Mill; 16 × 2 mm - 14 ; 5/8″ Shank Dia. × 4″ OAL ; Carbide ; TiAlN ; IN2005 ; Series MTB
| Thread Size | 16 | Application | | External Thread Milling | Internal Thread Milling | |
| Thread Pitch (TP) | 2 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Threads per Inch (TPI) | 14 | Cutting Edge Material | Carbide |
| Thread Standard | ISO | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Usable Length (LU) | 0.89″ |
| Cutting Diameter (DC) | 0.61″ | Series/List # | MTB |
| Functional Length (LF) | 39 mm | Measurement Type | Inch |
| Overall Length (OAL) | 4″ | Grade | IN2005 |
| Flute Count (NOF) | 4 | Standard | 1/2-3/4 |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Left Hand|Right Hand |
| Coating | TiAlN | Body Material | Steel |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.551
