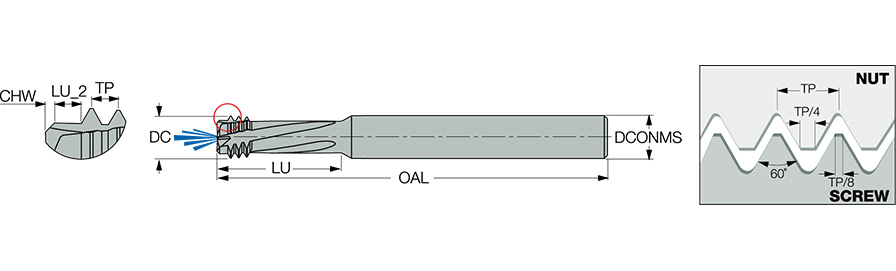

MTECD 0604C14 0.8ISO IC908
Thread Mill; M5 × 0.8 mm ; 6 mm Shank Dia. × 58 mm OAL ; Carbide ; TiAlN ; IC908 ; Series MTB
| Thread Size | M5 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 0.8 mm | Cutting Edge Material | Carbide |
| Thread Standard | THFT | | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 14.4 mm |
| Cutting Diameter (DC) | 4 mm | Series/List # | MTB |
| Functional Length (LF) | 39 mm | Measurement Type | Metric |
| Overall Length (OAL) | 58 mm | Grade | IC908 |
| Flute Count (NOF) | 3 | Tool Type | Solid Carbide Thread Mills |
| Coolant Supply Property (CSP) | External | Cutting Direction (HAND) | Left Hand|Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Drilling | Internal Thread Milling | | Thread Form Type (THFT) | M60 |
Product Features
| Family Description | Small diameter short left-hand cut (CNC code M04) solid carbide internal ISO profile drilling threading and chamfering endmills. High cutting speeds, low cutting forces due to the short contact resulting in accurate and parallel thread. | Country of Origin | Israel |
| Remarks | Thread hole, thread and chamfer by circular interpolation |
Shipping Info
Package Weight
0.056
