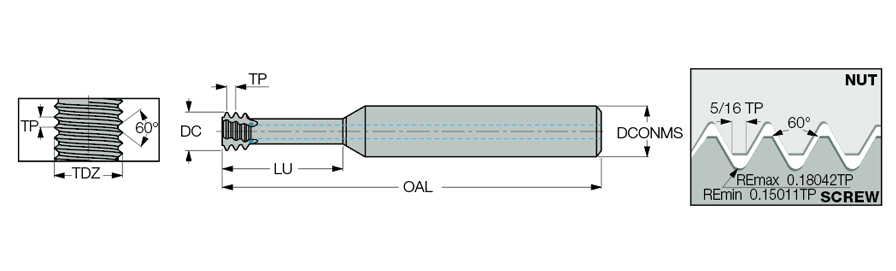

MTECS 06048C15 1.0MJ IC708
| Thread Size | 16 | Coating | AlTiCCrSiN |
| Thread Pitch (TP) | 1 mm | Application | MILL THREAD SOLID CARBIDE |
| Thread Standard | ISO | Applicable Material | Steel|Stainless Steel|Cast Iron|Hard Materials|Non-Ferrous Metals|Hi-Temp Alloys |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 4.8 mm | Cutting Position | Internal |
| Functional Length (LF) | 15 mm | Series/List # | MTB |
| Overall Length (OAL) | 58 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Grade | IC708 |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Left Hand|Right Hand |
| Shank Type | Round |
Product Features
| Family Description | Small diameter short solid carbide MJ-type profile threading endmills with coolant holes directed to the cutting edges. Used for internal J-type thread length of up to 2.5xD in the aerospace industry and for other applications. | Country of Origin | Israel |
Shipping Info
Package Weight
.0220
