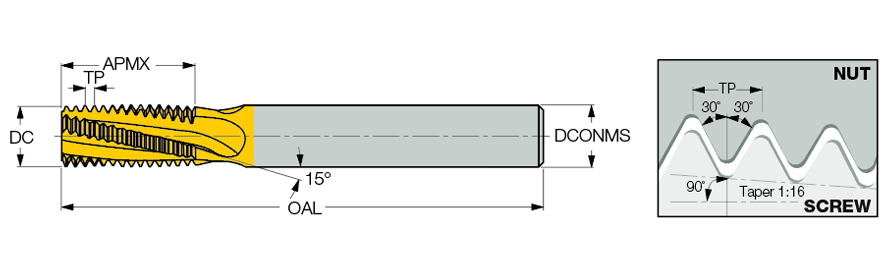

| Thread Pitch (TP) | 0.94 mm | Flute Helix Angle (FHA) | 15 Degrees |
| Threads per Inch (TPI) | 27 | Cutting Edge Material | Carbide |
| Thread Standard | NPT |THFT | | Cutting Position | External |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Series/List # | MTB |
| Cutting Diameter (DC) | 5.36 mm | Measurement Type | Metric |
| Functional Length (LF) | 39 mm | Grade | IC908 |

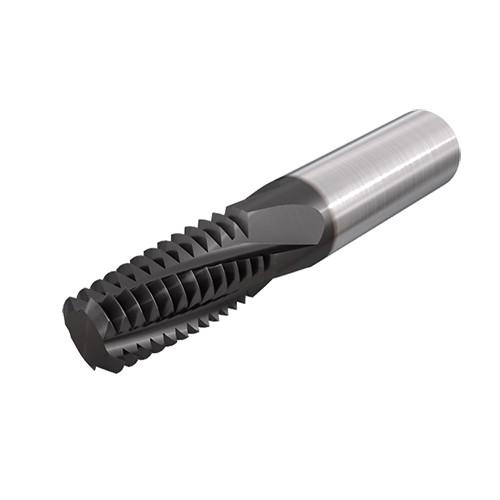

| Overall Length (OAL) | 58 mm | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 3 | Depth of Cut Maximum (APMX) | 9.9 mm |
| Shank Type | Round | Cutting Direction (HAND) | Left Hand|Right Hand |
| Coating | TiAlN | Body Material | Carbide |
| Application | | External Thread Milling | Internal Thread Milling | | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | NPT60 |
Product Features
| Family Description | Solid carbide threading endmills for an external or internal NPT thread profile. | Country of Origin | Israel |
| Remarks | Internal & External tolerance: ANSI/ASME B1.20.1 - Standard NPT |
Shipping Info
Package Weight
0.062
