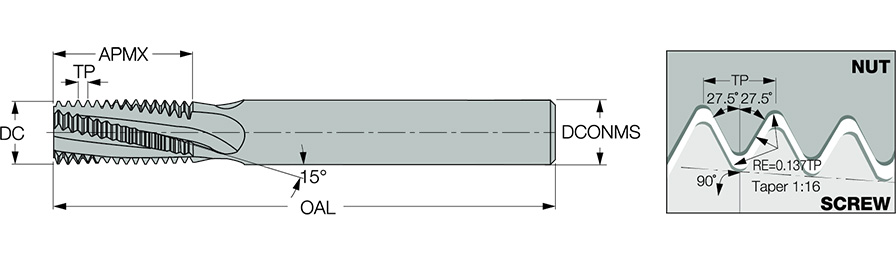

| Thread Pitch (TP) | 0.907 mm | Flute Helix Angle (FHA) | 15 Degrees |
| Threads per Inch (TPI) | 28 | Cutting Edge Material | Carbide |
| Thread Standard | BSPT |THFT | | Cutting Position | External |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Series/List # | MTB |
| Cutting Diameter (DC) | 5.4 mm | Measurement Type | Metric |
| Functional Length (LF) | 39 mm | Grade | IC908 |
| Overall Length (OAL) | 58 mm | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 3 | Depth of Cut Maximum (APMX) | 8.16 mm |
| Shank Type | Round | Cutting Direction (HAND) | Left Hand|Right Hand |
| Coating | TiAlN | Body Material | Carbide |
| Application | | External Thread Milling | Internal Thread Milling | | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | BSPT55 |
Product Features
| Family Description | Solid carbide threading endmills for external or internal BSPT thread profile. | Country of Origin | Israel |
| Remarks | Internal & External tolerance: ISO 7-1, EN 10226 (1&2) - Standard BSPT |
Shipping Info
Package Weight
0.052
