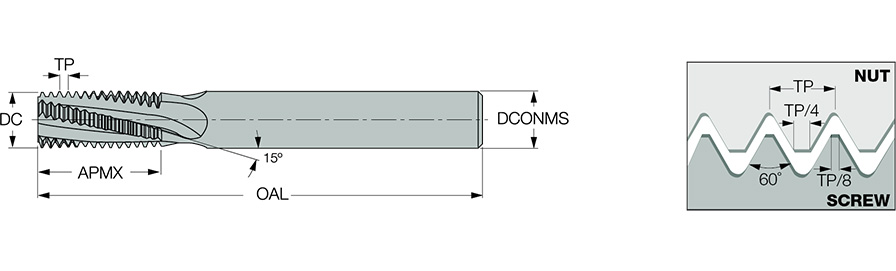

| Thread Pitch (TP) | 1.25 mm | Cutting Edge Material | Carbide |
| Thread Standard | THFT | | Cutting Position | External |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Series/List # | MTB |
| Cutting Diameter (DC) | 10 mm | Measurement Type | Metric |
| Functional Length (LF) | 39 mm | Grade | IC908 |
| Overall Length (OAL) | 73 mm | Tool Type | Solid Carbide Thread Mills |
| Flute Count (NOF) | 4 | Depth of Cut Maximum (APMX) | 16.9 mm |
| Shank Type | Round | Cutting Direction (HAND) | Left Hand|Right Hand |
| Coating | TiAlN | Body Material | Carbide |
| Application | | External Thread Milling | | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | M60 |
| Flute Helix Angle (FHA) | 15 Degrees |
Product Features
| Family Description | Solid carbide external threading endmills used for ISO thread profile. | Country of Origin | Israel |
Shipping Info
Package Weight
0.189
