MTECS 06047C20 1.0ISO IC908

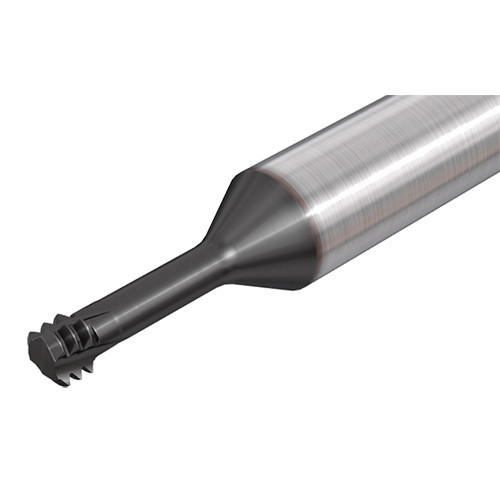

Thread Mill; M6 × 1 mm ; 6 mm Shank Dia. × 58 mm OAL ; Carbide ; TiAlN ; IC908 ; Series MTB

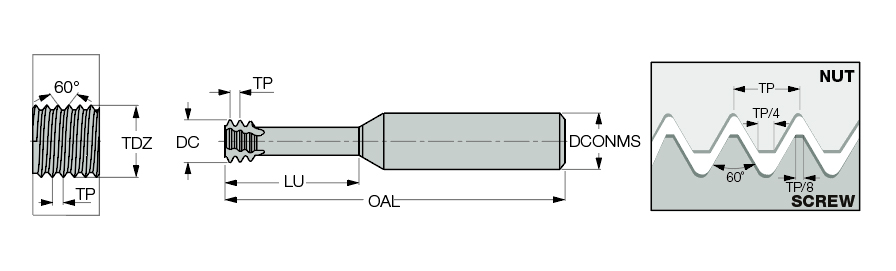

| Thread Size | M6 | Cutting Edge Material | Carbide |
| Thread Pitch (TP) | 1 mm | Cutting Position | Internal |
| Thread Standard | THFT | | Usable Length (LU) | 20 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Series/List # | MTB |
| Cutting Diameter (DC) | 4.65 mm | Measurement Type | Metric |
| Functional Length (LF) | 39 mm | Grade | IC908 |
| Overall Length (OAL) | 58 mm | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 3 | Depth of Cut Maximum (APMX) | 2.55 mm |
| Shank Type | Round | Cutting Direction (HAND) | Left Hand|Right Hand |
| Coating | TiAlN | Body Material | Carbide |
| Application | | Internal Thread Milling | | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | M60 |
Product Features
| Family Description | Small diameter, solid carbide internal ISO profile threading mills. Designed for high cutting speeds, short cycle time and low cutting forces. Short threading contact for accurate and parallel thread. | Country of Origin | Israel |
Shipping Info
Package Weight
0.055
