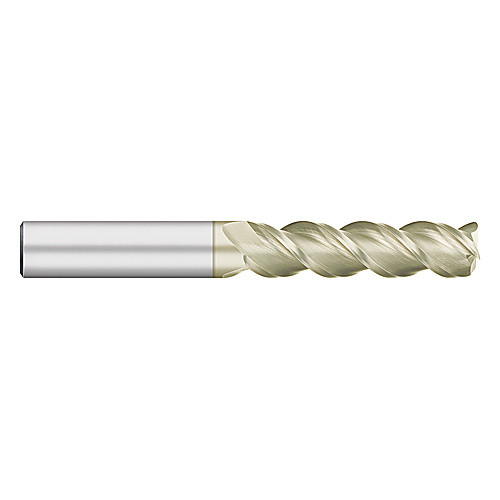

665 1/8 3FRAD-0.010 ZIRC
Corner Radius End Mill; 1/8″ Dia. × 3/4″ LOC × 1/8″ Shank Dia. × 2-1/4″ OAL ; 3 FL ; Carbide ; ZrN
| Cutting Diameter (DC) | 1/8″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 3/4″ |
| Depth of Cut Maximum (APMX) | 3/4″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 2-1/4″ | Decimal Equivalent | 0.125″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | ZrN | Corner Radius (RE) / Chamfer Width (CHW) | 0.01″ |
| Flute Count (NOF) | 3 | Center Cutting | Yes |
| Flute Helix Angle (FHA) | 45 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.018
