653 1/4 2FRAD-0.020 ZIRC

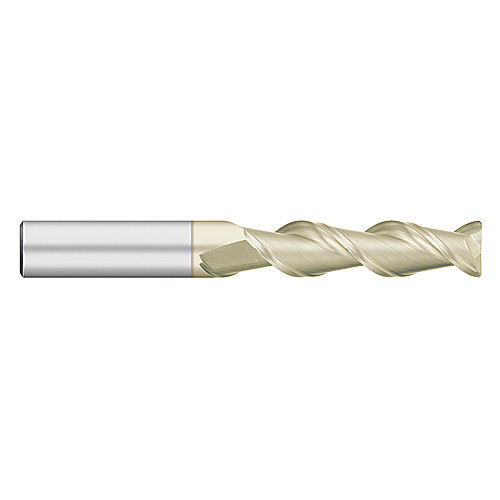

Corner Radius End Mill; 1/4″ Dia. × 1-1/4″ LOC × 1/4″ Shank Dia. × 3″ OAL ; 2 FL ; Carbide ; ZrN
| Cutting Diameter (DC) | 1/4″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Usable Length (LU) | 1-1/4″ |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 3″ | Decimal Equivalent | 0.25″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | ZrN | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
| Flute Count (NOF) | 2 | Center Cutting | Yes |
| Flute Helix Angle (FHA) | 45 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.062
