AMT 1208 C21 1.5 ISO-C

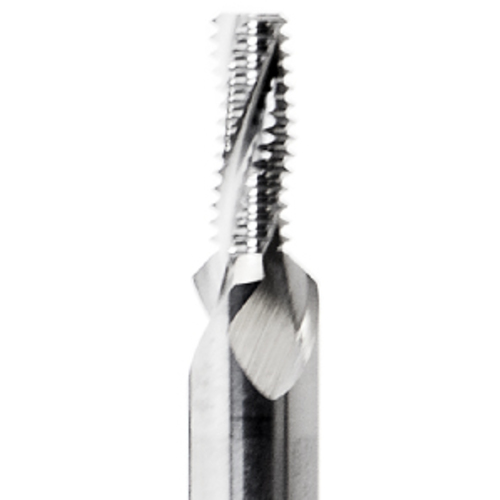

Thread Mill; M10 × 1.5 mm ; 12 mm Shank Dia. × 3.3″ OAL ; Carbide ; Uncoated ; K20 ; Series AMT
| Thread Size | M10 | Application | ALUMINIUM MILL THREAD |
| Thread Pitch (TP) | 1.5 mm | Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Thread Standard | ISO | Flute Helix Angle (FHA) | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 8 mm | Cutting Position | Internal |
| Functional Length (LF) | 21.8 mm | Series/List # | AMT |
| Overall Length (OAL) | 3.3″ | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Grade | K20 |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | | Left Hand | Right Hand | |
| Coating | Uncoated |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.25
