FMT 06032 E7 0.7 ISO MT8

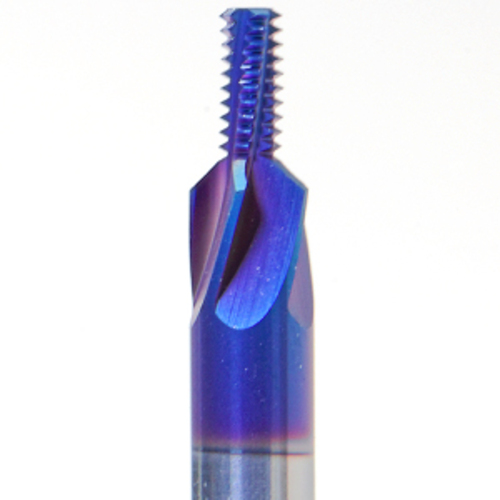

Thread Mill; M4 × 0.7 mm ; 6 mm Shank Dia. × 2.3″ OAL ; Carbide ; TiAlN ; MT8 ; Series FMT
| Thread Size | M4 | Application | FAST MILL THREAD |
| Thread Pitch (TP) | 0.7 mm | Applicable Material | | General Purpose | |
| Thread Standard | ISO | Flute Helix Angle (FHA) | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 3.2 mm | Cutting Position | Internal |
| Functional Length (LF) | 7.37 mm | Series/List # | FMT |
| Overall Length (OAL) | 2.3″ | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Grade | MT8 |
| Coolant Supply Property (CSP) | Coolant Thru | Corner Chamfer Width (CHW) | 8.13 mm |
| Coating | TiAlN | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.07
