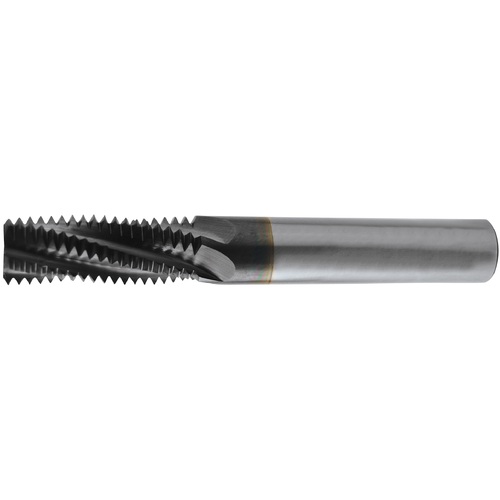

1-12 5 Flute Solid Thread Mill-TiAlN
Thread Mill; 1″ - 18 ; 3/4″ Shank Dia. × 4″ OAL ; Carbide ; TiAlN ; Series CTM
| Thread Size | 1″ | Shank Type | Round |
| Threads per Inch (TPI) | 18 | Coating | TiAlN |
| Thread Standard | UNF | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Usable Length (LU) | 1-3/8″ |
| Cutting Diameter (DC) | 0.62″ | Series/List # | CTM |
| Overall Length (OAL) | 4″ | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Tool Type | Thread Mill |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.721
