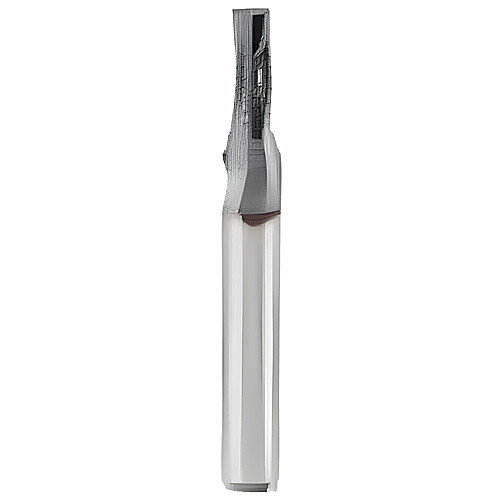

TM-3/8X16UNC-10R1 THREAD MILL
Thread Mill; 3/8″ ; 10 mm Shank Dia. × 74 mm OAL
Additional Tariff Surcharge of 8 %
| Thread Size | 3/8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Thread Standard | NC | Threads per Inch Minimum (TPIN) | 16 |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Threads per Inch Maximum (TPIX) | 16 |
| Cutting Diameter (DC) | 7.35 mm | Cutting Position | Internal |
| Overall Length (OAL) | 74 mm | Usable Length (LU) | 19.8 mm |
| Flute Count (NOF) | 3 |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.137
