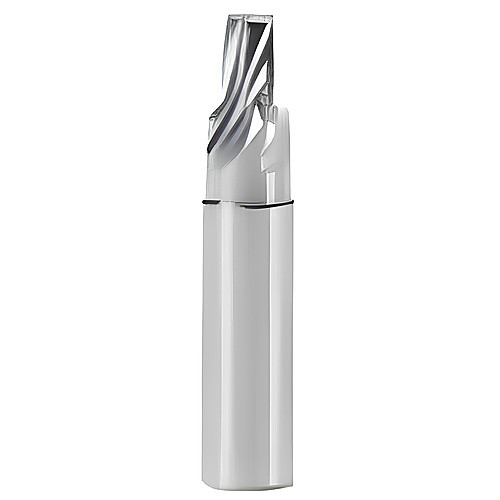

TM-1/4X18NPT-16R1 THREAD MILL
Thread Mill; 1/4″ ; 16 mm Shank Dia. × 81 mm OAL
Additional Tariff Surcharge of 8 %
| Thread Size | 1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Thread Standard | NPT | Threads per Inch Minimum (TPIN) | 18 |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Threads per Inch Maximum (TPIX) | 18 |
| Cutting Diameter (DC) | 10.05 mm | Cutting Position | External|Internal |
| Overall Length (OAL) | 81 mm | Usable Length (LU) | 13.4 mm |
| Flute Count (NOF) | 4 | Tool Type | Pipe Thread |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.395
