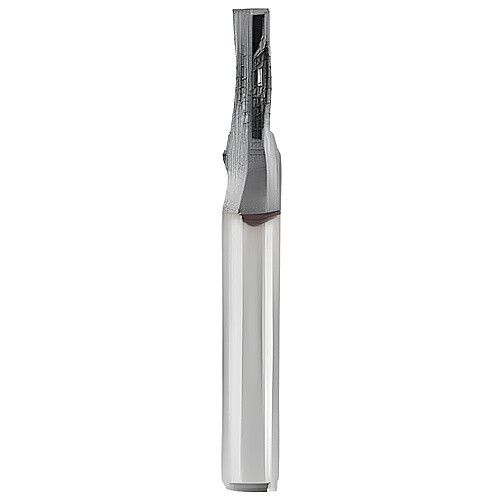

TM-7/16X14UNC-12R1 THREAD MILL
Thread Mill; 7/16″ ; 12 mm Shank Dia. × 79 mm OAL
Additional Tariff Surcharge of 8 %
| Thread Size | 7/16″ | Coolant Supply Property (CSP) | Coolant Thru |
| Thread Standard | NC | Threads per Inch Minimum (TPIN) | 14 |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Threads per Inch Maximum (TPIX) | 14 |
| Cutting Diameter (DC) | 8.55 mm | Cutting Position | Internal |
| Overall Length (OAL) | 79 mm | Usable Length (LU) | 22.7 mm |
| Flute Count (NOF) | 3 |
Product Features
| Country of Origin | Poland |
Shipping Info
Package Weight
0.207
