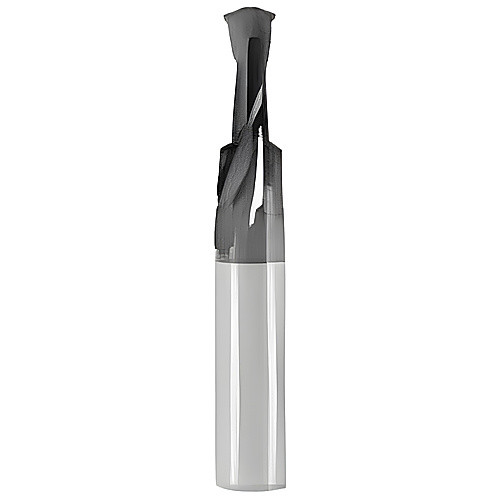

DTM-3/8X16UNC-12R1 THREAD MILL
Thread Mill; 3/8″ ; 12 mm Shank Dia. × 79 mm OAL
Additional Tariff Surcharge of 8 %
| Thread Size | 3/8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Thread Standard | NC | Threads per Inch Minimum (TPIN) | 16 |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Threads per Inch Maximum (TPIX) | 16 |
| Cutting Diameter (DC) | 7.36 mm | Cutting Position | Internal |
| Overall Length (OAL) | 79 mm | Usable Length (LU) | 22.97 mm |
| Flute Count (NOF) | 2 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.185
