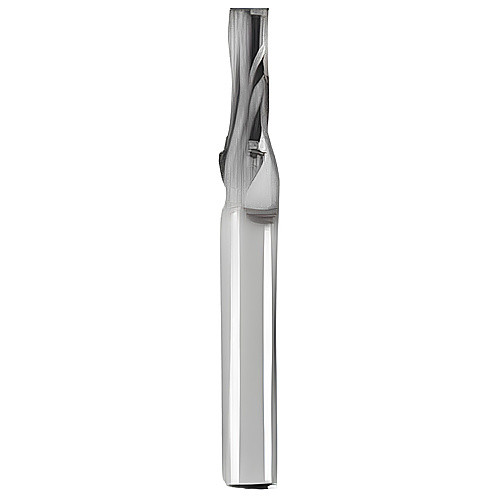

TM-3/8X19W-18R1 THREAD MILL
Thread Mill; 3/8″ ; 18 mm Shank Dia. × 102 mm OAL
Additional Tariff Surcharge of 8 %
| Thread Size | 3/8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Thread Standard | BSP | Threads per Inch Minimum (TPIN) | 19 |
| Connection Diameter Machine Side (DCONMS) | 18 mm | Threads per Inch Maximum (TPIX) | 19 |
| Cutting Diameter (DC) | 13.9 mm | Cutting Position | External|Internal |
| Overall Length (OAL) | 102 mm | Usable Length (LU) | 35.4 mm |
| Flute Count (NOF) | 4 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.567
