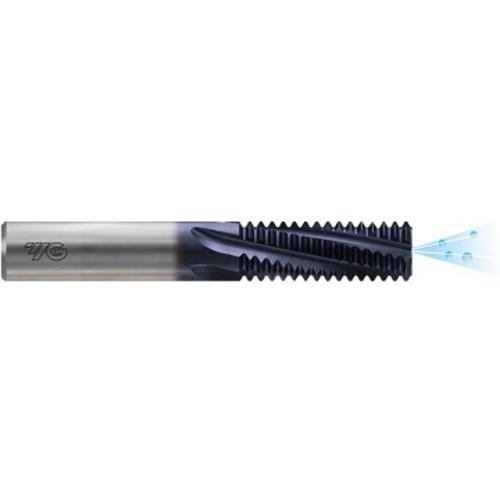

Thread Mill; 3/8″ - 24 - 24 ; 5/16″ Shank Dia. × 3″ OAL ; Carbide ; TiAIN ; Series L421E
| Thread Size | 3/8″ - 24 | Coating | TiAIN |
| Threads per Inch (TPI) | 24 | Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | 3/8″ | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Standard | UN | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Series/List # | L421E |
| Cutting Diameter (DC) | 0.285″ | Measurement Type | Inch |
| Overall Length (OAL) | 3″ | Standard | ANSI B1.1 |
| Flute Count (NOF) | 4 | Tool Type | Solid carbide thread mills |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.503937008
Package Width
0.708661417
Package Height
0.708661417
Package Weight
0.999
