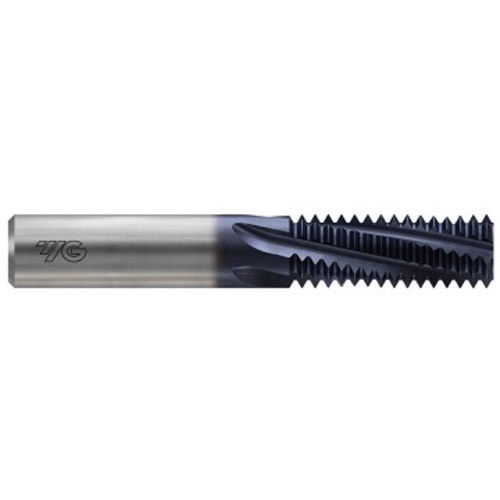

Thread Mill; 1″ | 2″ - 11.5 - 11.5 ; 5/8″ Shank Dia. × 4″ OAL ; Carbide ; TiAIN ; Series L421K
| Thread Size | 1″ | 2″ - 11.5 | Coating | TiAIN |
| Threads per Inch (TPI) | 11.5 | Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | 1″ | 2″ | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Standard | NPS | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Series/List # | L421K |
| Cutting Diameter (DC) | 0.62″ | Measurement Type | Inch |
| Overall Length (OAL) | 4″ | Standard | ANSI B 1.20.1 |
| Flute Count (NOF) | 4 | Tool Type | Solid carbide thread mills |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.212598425
Package Width
0.94488189
Package Height
0.94488189
Package Weight
0.999
