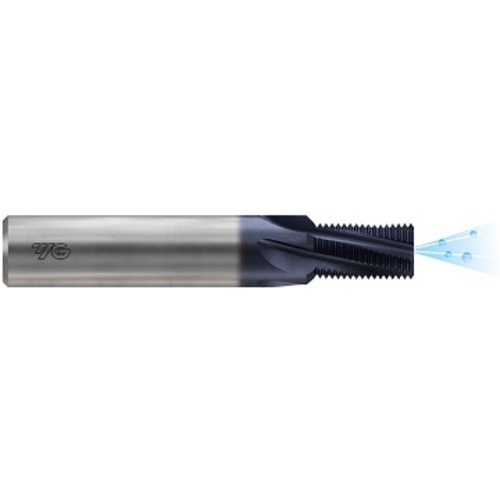

Thread Mill; 1/4″ - 20 - 20 ; 5/16″ Shank Dia. × 2-1/2″ OAL ; Carbide ; TiAIN ; Series L427E
| Thread Size | 1/4″ - 20 | Coating | TiAIN |
| Threads per Inch (TPI) | 20 | Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | 1/4″ | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Standard | UN | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Series/List # | L427E |
| Cutting Diameter (DC) | 0.19″ | Measurement Type | Inch |
| Overall Length (OAL) | 2-1/2″ | Standard | DIN13 |
| Flute Count (NOF) | 3 | Tool Type | Solid carbide thread mills |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Point Angle (SIG) | 90 Degrees |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.188976378
Package Width
0.511811024
Package Height
0.511811024
Package Weight
0.999
