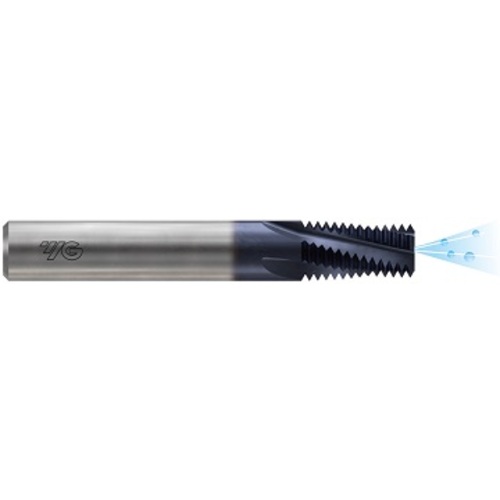

Thread Mill; 1/16″ | 1/8″ - 27 - 27 ; 1/4″ Shank Dia. × 2-1/2″ OAL ; Carbide ; TiAIN ; Series L621G
| Thread Size | 1/16″ | 1/8″ - 27 | Coating | TiAIN |
| Threads per Inch (TPI) | 27 | Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | 1/16″ | 1/8″ | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Standard | NPTF | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Series/List # | L621G |
| Cutting Diameter (DC) | 0.245″ | Measurement Type | Inch |
| Overall Length (OAL) | 2-1/2″ | Standard | ANSI B 1.20.1 |
| Flute Count (NOF) | 3 | Tool Type | Solid carbide thread mills |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.188976378
Package Width
0.511811024
Package Height
0.511811024
Package Weight
0.999
