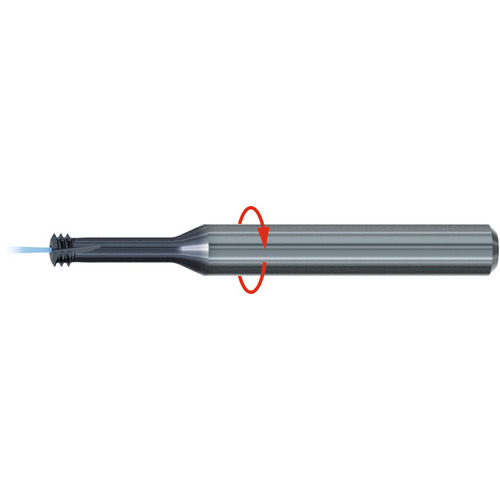

GF26A729.5044 THREAD MILL
Thread Mill; 5/16″ | 3/8″ - 24 ; 8 mm Shank Dia. × 2.283″ OAL ; Carbide ; AlTiN ; Series GF26A729
| Thread Size | 5/16″ | 3/8″ | Application | | External Thread Milling | Internal Thread Milling | |
| Threads per Inch (TPI) | 24 | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Thread Standard | UNF | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Usable Length (LU) | 0.642″ |
| Cutting Diameter (DC) | 0.26″ | Series/List # | GF26A729 |
| Overall Length (OAL) | 2.283″ | Length Group | 2xD |
| Flute Count (NOF) | 5 | Tool Type | Thread Mill |
| Shank Type | Round | Cutting Direction (HAND) | Left Hand |
| Coating | AlTiN |
Product Features
| Remarks | • Solid carbide circular thread mill with left hand flute design for additional stability. • Three tooth design with roughing and finishing in a single profile. • Full bottoming threads to within 1 pitch • For aerospace and exotic materials | Country of Origin | Germany |
Shipping Info
Package Weight
0.999
