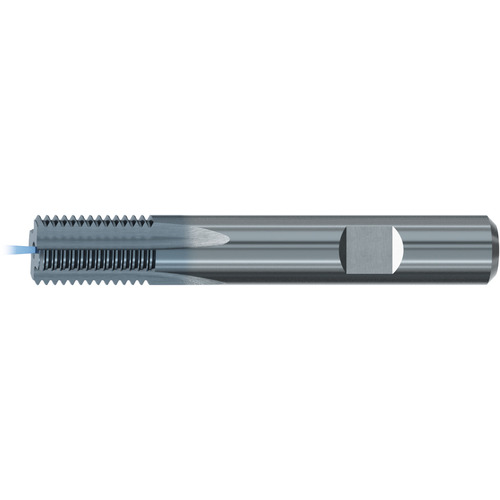

Thread Mill; M11 × 0.75 mm × 8 mm Shank Dia. × 63 mm OAL ; Carbide ; TiCN ; Series A214524
Thread Mill; M11 × 0.75 mm ; 8 mm Shank Dia. × 63 mm OAL ; Carbide ; TiCN ; Series A214524
| Thread Size | M11 | Coating | TiCN |
| Thread Pitch (TP) | 0.75 mm | Application | | External Thread Milling | Internal Thread Milling | |
| Thread Diameter Size (TDZ) | >=M11 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Thread Standard | Metric | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Flute Type | Straight |
| Cutting Diameter (DC) | 8 mm | Usable Length (LU) | 12.3 mm |
| Overall Length (OAL) | 63 mm | Series/List # | A214524 |
| Flute Count (NOF) | 3 | Length Group | Standard |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | Thread Mill |
| Shank Type | Weldon | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Remarks | • Full profile cutter for the production of internal threads and external threads • Axial coolant fed channel for enhanced chip removal rates • In order to avoid serious profile deviation in internal threads, the cutter diameter should not exceed 2/3 (3/4 with fine threads) of the thread to be produced • Pre-drilled hole is required | Country of Origin | Germany |
Shipping Info
Package Weight
.990
