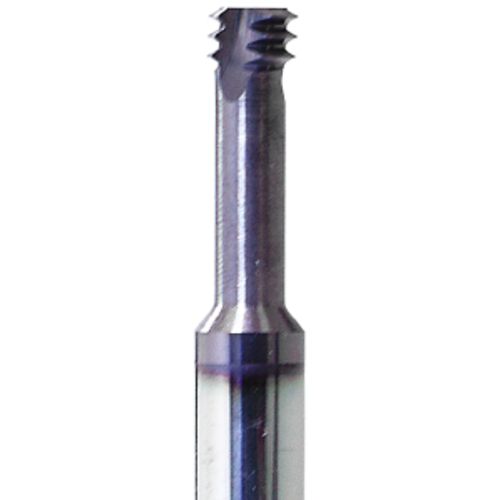

MTS 12105 C31 12UN THREAD MILL
Thread Mill; 9/16 - 12 ; 12 mm Shank Dia. × 84 mm OAL ; Carbide ; TiAlN ; MT7 ; Series MTS
| Thread Size | 9/16 | Coating | TiAlN |
| Threads per Inch (TPI) | 12 | Application | MINI MILL THREAD |
| Thread Standard | UN | Applicable Material | | General Purpose | |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 10.5 mm | Cutting Position | Internal |
| Functional Length (LF) | 31.5 mm | Series/List # | MTS |
| Overall Length (OAL) | 84 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Grade | MT7 |
| Coolant Supply Property (CSP) | External | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Country of Origin | Israel |
