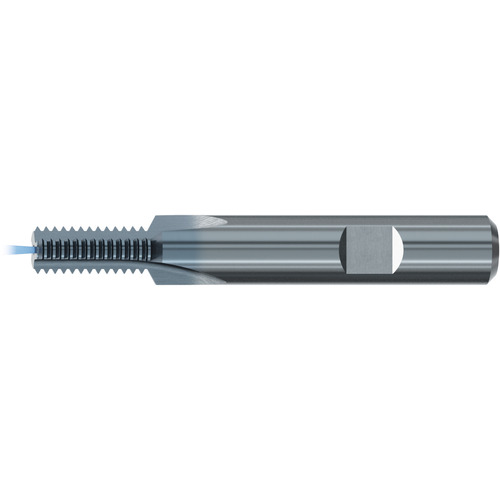

Thread Mill; M5 × 0.8 mm × 6 mm Shank Dia. × 55 mm OAL ; Carbide ; TiCN ; Series A223344
Thread Mill; M5 × 0.8 mm ; 6 mm Shank Dia. × 55 mm OAL ; Carbide ; TiCN ; Series GF333106
| Thread Size | M5 | Coating | TiCN |
| Thread Pitch (TP) | 0.8 mm | Application | | External Thread Milling | Internal Thread Milling | |
| Thread Diameter Size (TDZ) | M5 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Thread Standard | Metric | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Flute Type | Straight |
| Cutting Diameter (DC) | 4 mm | Usable Length (LU) | 10.7 mm |
| Overall Length (OAL) | 55 mm | Series/List # | GF333106 |
| Flute Count (NOF) | 3 | Length Group | 2xD |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | Thread Mill |
| Shank Type | Weldon | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Remarks | • Combination countersink & thread mill. • Axial coolant fed channel for enhanced chip removal rates • This tool is for a specific pitch with corrected thread profile • Pre-drilled hole is required | Country of Origin | Germany |
Shipping Info
Package Weight
0.99
