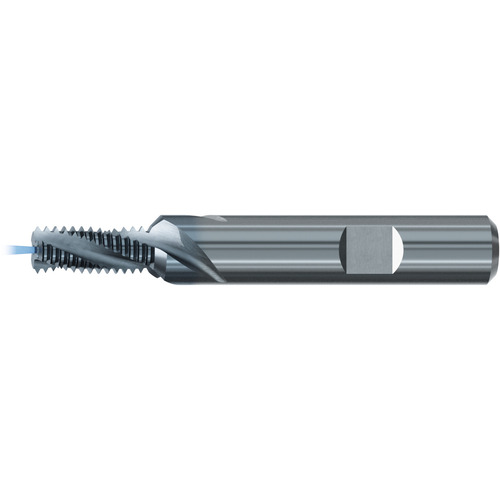

Thread Mill; M10 × 1.5 mm × 12 mm Shank Dia. × 80 mm OAL ; Carbide ; TiCN ; Series A223344
Thread Mill; M10 × 1.5 mm ; 12 mm Shank Dia. × 80 mm OAL ; Carbide ; TiCN ; Series A223344
| Thread Size | M10 | Application | | External Thread Milling | Internal Thread Milling | |
| Thread Pitch (TP) | 1.5 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | M10 | Flute Helix Angle (FHA) | 30 Degrees |
| Thread Standard | Metric | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Flute Type | Spiral |
| Cutting Diameter (DC) | 8.2 mm | Usable Length (LU) | 15.8 mm |
| Overall Length (OAL) | 80 mm | Series/List # | GF322106 |
| Flute Count (NOF) | 3 | Length Group | 1.5xD |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | Thread Mill |
| Shank Type | Weldon | Cutting Direction (HAND) | | Left Hand | Right Hand | |
| Coating | TiCN |
Product Features
| Remarks | • Combination countersink & thread mill. • Axial coolant fed channel for enhanced chip removal rates • This tool is for a specific pitch with corrected thread profile • Pre-drilled hole is required | Country of Origin | Germany |
