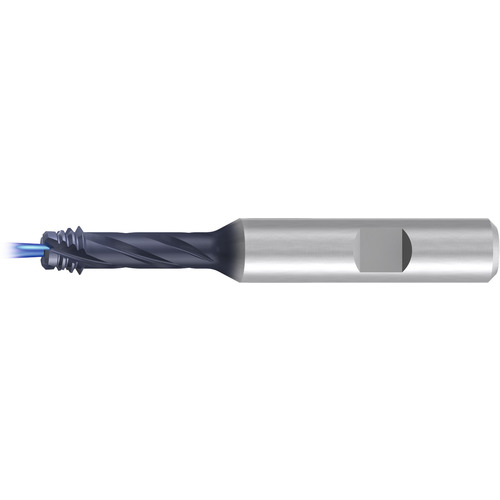

Thread Mill; M12 × 1.75 mm × 12 mm Shank Dia. × 86 mm OAL ; Carbide ; TiAlN ; Series A503344
Thread Mill; M12 × 1.75 mm ; 12 mm Shank Dia. × 86 mm OAL ; Carbide ; AlTiN ; Series A503344
| Thread Size | M12 | Coating | AlTiN |
| Thread Pitch (TP) | 1.75 mm | Application | | Drilling | Internal Thread Milling | |
| Thread Diameter Size (TDZ) | M12 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Thread Standard | Metric | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Series/List # | GF732257 |
| Cutting Diameter (DC) | 9.2 mm | Length Group | 2xD |
| Overall Length (OAL) | 86 mm | Tool Type | Thread Mill |
| Flute Count (NOF) | 4 | Depth of Cut Maximum (APMX) | 7.9 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | | Left Hand | Right Hand | |
| Shank Type | Weldon |
Product Features
| Remarks | • Solid carbide circular thread mill for most materials up to 44 HRC • Premium sub-micro grain carbide tool for internal threads. • Drill and thread with one tool. • Coolant fed for enhanced chip evacuation. | Country of Origin | Germany |
Shipping Info
Package Weight
.990
