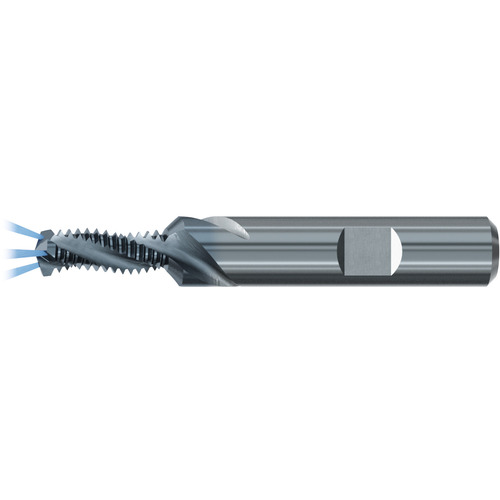

Thread Mill; M10 × 1.5 mm × 12 mm Shank Dia. × 79 mm OAL ; Carbide ; TiCN ; Series A403324
Thread Mill; M10 × 1.5 mm ; 12 mm Shank Dia. × 79 mm OAL ; Carbide ; TiCN ; Series A403324
| Thread Size | M10 | Application | | Chamfering | Drilling | Internal Thread Milling | |
| Thread Pitch (TP) | 1.5 mm | Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | M10 | Flute Helix Angle (FHA) | 30 Degrees |
| Thread Standard | Metric | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Flute Type | Spiral |
| Cutting Diameter (DC) | 8.2 mm | Usable Length (LU) | 18.2 mm |
| Overall Length (OAL) | 79 mm | Series/List # | GF422256 |
| Flute Count (NOF) | 3 | Length Group | 2xD |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | Thread Mill |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Coating | TiCN | Point Angle (SIG) | 140 Degrees |
Product Features
| Remarks | • Combination drill, countersink & thread mill. Coolant fed design. • No pre-drilled tap hole necessary • Tool for a specific dimension with corrected thread profile • Combine three operations into one tool. | Country of Origin | Germany |
Shipping Info
Package Weight
.990
