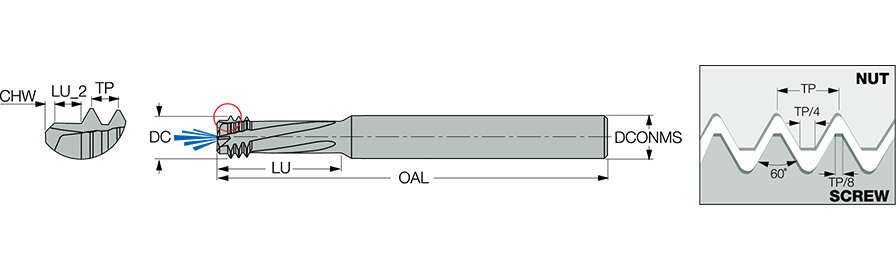

| Thread Size | M5 | Cutting Edge Material | Carbide |
| Thread Pitch (TP) | 0.8 mm | Cutting Position | Internal |
| Thread Standard | THFT | | Usable Length (LU) | 0.567″ |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Series/List # | MTB |
| Cutting Diameter (DC) | 0.157″ | Measurement Type | Inch |
| Functional Length (LF) | 39 mm | Grade | IC908 |
| Overall Length (OAL) | 2.283″ | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 3 | Depth of Cut Maximum (APMX) | 0.122″ |
| Coolant Supply Property (CSP) | External | Cutting Direction (HAND) | Left Hand|Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Drilling | Internal Thread Milling | | Thread Form Type (THFT) | M60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features

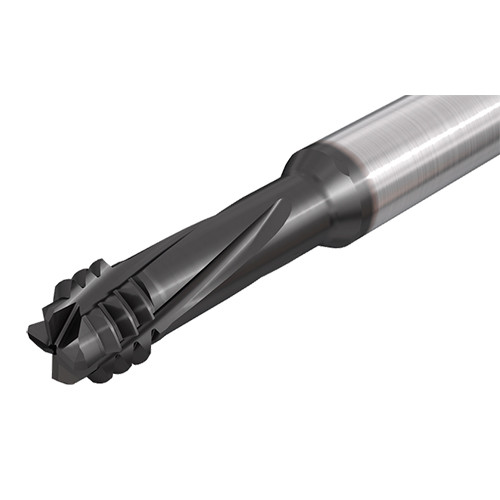

| Family Description | Small diameter short left-hand cut (CNC code M04) solid carbide internal ISO profile drilling threading and chamfering endmills. High cutting speeds, low cutting forces due to the short contact resulting in accurate and parallel thread | Country of Origin | Israel |
| Remarks | Thread hole, thread and chamfer by circular interpolation |
Shipping Info
Package Weight
0.049
