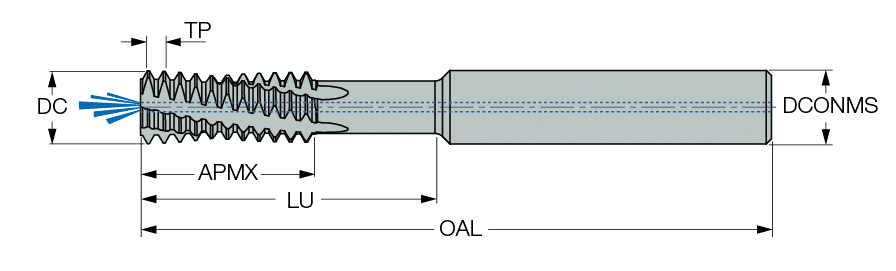

| Thread Pitch (TP) | 1 mm | Cutting Edge Material | Carbide |
| Thread Standard | MF |THFT | | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 0.472″ | Usable Length (LU) | 1.496″ |
| Cutting Diameter (DC) | 0.472″ | Series/List # | MTB |
| Functional Length (LF) | 39 mm | Measurement Type | Inch |
| Overall Length (OAL) | 3.307″ | Grade | IC908 |
| Flute Count (NOF) | 4 | Tool Type | Solid carbide thread mills |
| Coolant Supply Property (CSP) | Coolant Thru | Depth of Cut Maximum (APMX) | 0.827″ |
| Shank Type | Round | Cutting Direction (HAND) | Left Hand|Right Hand |
| Coating | TiAlN | Body Material | Carbide |
| Application | | Internal Thread Milling | | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | M60 |
Product Features

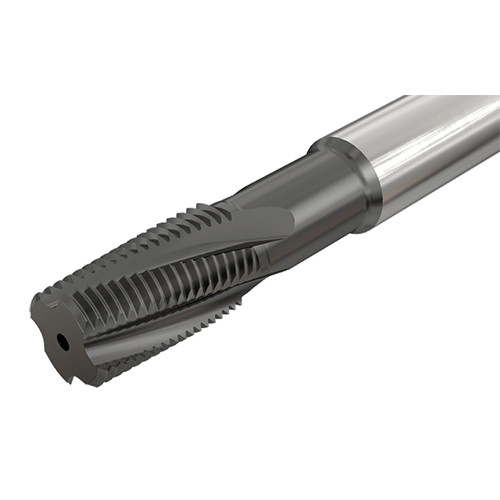

| Family Description | Solid carbide threading endmills with internal coolant hole and a reduced diameter neck. Used for deep internal large pitch ISO thread profile (up to 3D) on medium and large thread diameters. | Country of Origin | Israel |
Shipping Info
Package Weight
0.271
