| Thread Pitch (TP) | 0.4 mm | Cutting Edge Material | Carbide |
| Thread Standard | MC |THFT | | Cutting Position | Internal |

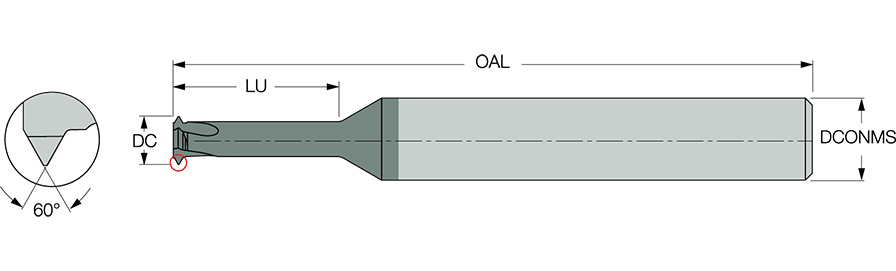

| Connection Diameter Machine Side (DCONMS) | 0.118″ | Usable Length (LU) | 0.28″ |
| Cutting Diameter (DC) | 0.061″ | Series/List # | MTB |
| Functional Length (LF) | 39 mm | Measurement Type | Inch |
| Overall Length (OAL) | 1.535″ | Grade | IC902 |

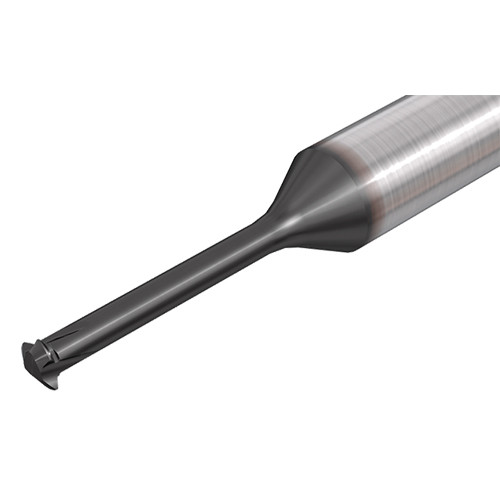

| Flute Count (NOF) | 3 | Tool Type | Solid carbide thread mills |
| Shank Type | Round | Cutting Direction (HAND) | Left Hand|Right Hand |
| Coating | AlTiN | Body Material | Carbide |
| Application | | Internal Thread Milling | | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | M60 |
Product Features
| Family Description | Small diameter single point, internal ISO profile solid carbide thread mills. | Country of Origin | Israel |
Shipping Info
Package Weight
0.024
