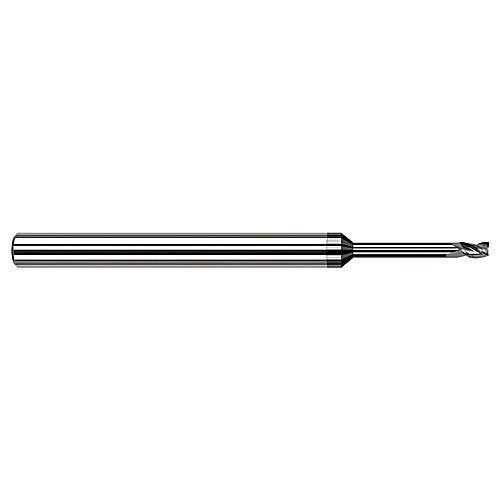

4 Flute - 0.0620″ (1/16) Cutter DIA × 0.0930″ (3/32) LOC × 0.5000″ (1/2) Reach - Amorphous Diamond Coated Miniature End Mills - Square - Long Reach, Stub Flute
Square End Mill; 1/16″ Dia. × 3/32″ LOC × 1/8″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; DLC
| Cutting Diameter (DC) | 1/16″ | Usable Length (LU) | 1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Neck Diameter (DN) | 0.0605″ |
| Depth of Cut Maximum (APMX) | 3/32″ | Length Group | 8D |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | DLC | Decimal Equivalent | 0.062″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Shank Size (SS) | 1/8″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.030
