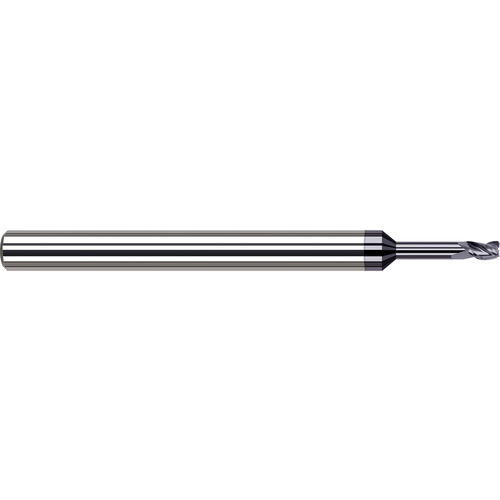

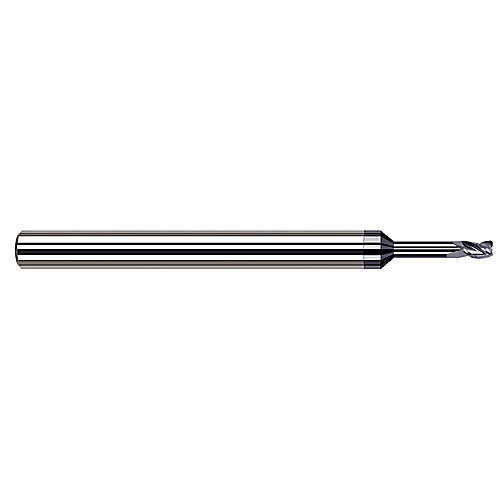

3 Flute - 0.0930″ (3/32) Cutter DIA × 0.0200″ Radius × 0.1400″ (9/64) LOC × 0.5000″ (1/2) Reach - AlTiN Nano Coated Variable Helix End Mills for High Temp Alloys - Corner Radius - Long Reach, Stub Flute
SQ End Mill; 3/32″ Dia. × 9/64″ LOC × 1/8″ Shank Dia. × 2-1/2″ OAL ; 3 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 3/32″ | Corner Radius (RE) | 0.02″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Neck Diameter (DN) | 0.0915″ |
| Depth of Cut Maximum (APMX) | 9/64″ | Length Group | 5D |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN | Decimal Equivalent | 0.093″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 34 Degrees | Shank Size (SS) | 1/8″ |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
| End Shape | Corner Radius | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 1/2″ | Single / Double End | Single End |
| Applicable Material | | Super-Alloys / Titanium | |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.03
