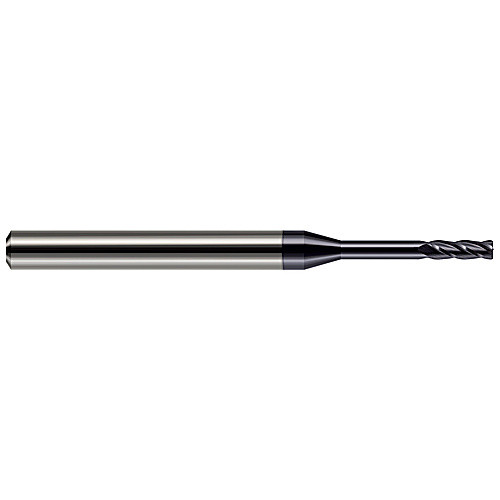

4 Flute - 0.1180″ (3 mm) Cutter DIA × 0.0100″ Radius × 0.3540″ LOC × 0.9500″ Reach - AlTiN Coated Miniature End Mills - Corner Radius - Long Reach, Standard Flute
Corner Radius End Mill; 0.118″ Dia. × 0.354″ LOC × 1/8″ Shank Dia. × 2″ OAL ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 0.118″ | Corner Radius (RE) | 0.01″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Neck Diameter (DN) | 0.1165″ |
| Depth of Cut Maximum (APMX) | 0.354″ | Length Group | 8D |
| Overall Length (OAL) | 2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Shank Size (SS) | 1/8″ |
| Flute Helix Angle (FHA) | 30 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.01″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Corner Radius | Single / Double End | Single End |
| Usable Length (LU) | 0.95″ |
Product Features
| Country of Origin | USA |
