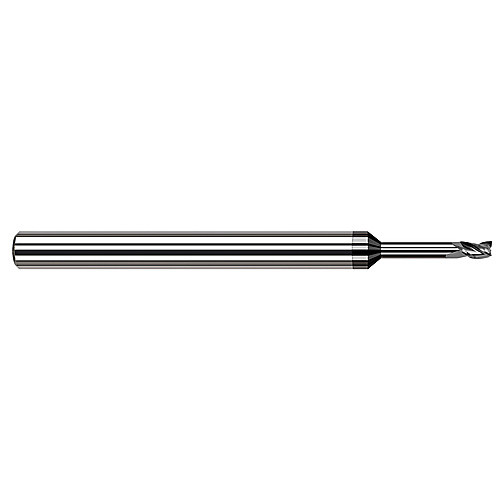

3 Flute - 0.0310″ (1/32) Cutter DIA × 0.0460″ LOC × 0.1870″ (3/16) Reach - Amorphous Diamond Coated Miniature End Mills - Square - Long Reach, Stub Flute
SQ End Mill; 1/32″ Dia. × 0.046″ LOC × 1/8″ Shank Dia. × 2-1/2″ OAL ; 3 FL ; 3/16″ LBS ; Carbide ; DLC
| Cutting Diameter (DC) | 1/32″ | Usable Length (LU) | 3/16″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Neck Diameter (DN) | 0.03″ |
| Depth of Cut Maximum (APMX) | 0.046″ | Length Group | 6D |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | DLC | Decimal Equivalent | 0.031″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Shank Size (SS) | 1/8″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.03
