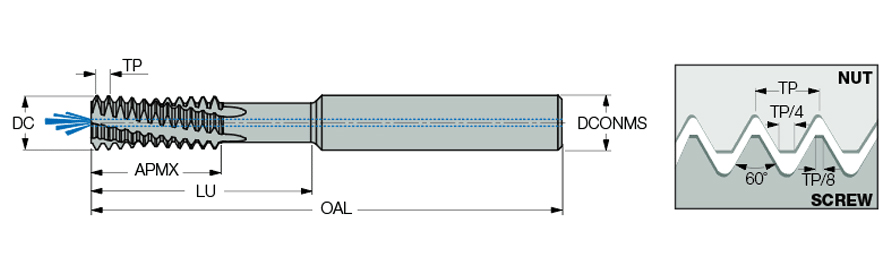

MTECQ 1616E42 16UN IC908
Thread Mill; >=19 - 16 Threads/" ; 16 mm Shank Dia. × 105 mm OAL ; Carbide ; TiAlN ; IC908 ; Series MTB
| Thread Size | >=19 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 16 Threads/" | Cutting Edge Material | Carbide |
| Thread Standard | THFT | | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Usable Length (LU) | 42.9 mm |
| Cutting Diameter (DC) | 16 mm | Series/List # | MTB |
| Functional Length (LF) | 39 mm | Measurement Type | Metric |
| Overall Length (OAL) | 105 mm | Grade | IC908 |
| Flute Count (NOF) | 5 | Tool Type | Solid Carbide Thread Mills |
| Coolant Supply Property (CSP) | Coolant Thru | Depth of Cut Maximum (APMX) | 25.4 mm |
| Shank Type | Round | Cutting Direction (HAND) | Left Hand|Right Hand |
| Coating | TiAlN | Body Material | Carbide |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | UN60 |
Product Features
| Family Description | Solid carbide endmills with internal coolant holes and a reduced diameter neck. Used for deep internal, large pitch UN profile threading (up to 3D), on medium and large thread diameters. | Country of Origin | Israel |
Shipping Info
Package Weight
0.586
