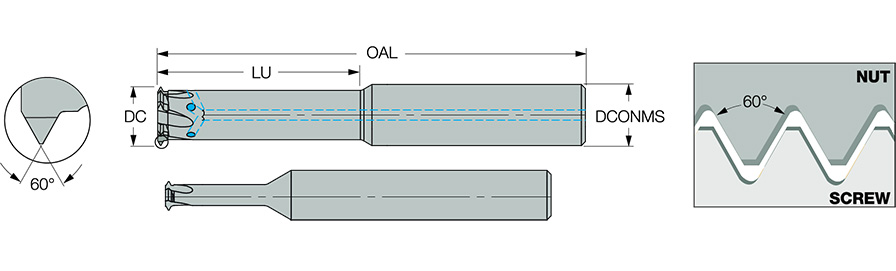

MTECI 03024C7 A60 IC902
Thread Mill; (a) ; 3 mm Shank Dia. × 38 mm OAL ; Carbide ; TiAlN ; IC902 ; Series MTB
| Thread Size | (a) | Pitch Internal | 0.50-0.80 mm |
| Thread Standard | THFT | | Pitch External | 0.50-0.80 mm |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 2.4 mm | Cutting Position | Internal |
| Functional Length (LF) | 39 mm | Usable Length (LU) | 7.1 mm |
| Overall Length (OAL) | 38 mm | Series/List # | MTB |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Coolant Supply Property (CSP) | External | Grade | IC902 |
| Shank Type | Round | Tool Type | Solid Carbide Thread Mills |
| Coating | TiAlN | Cutting Direction (HAND) | Left Hand|Right Hand |
| Application | | External Thread Milling | Internal Thread Milling | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | Cylindrical |
| Pitch TPI Internal (TPI Int) | 48-32 Threads/" | Thread Form Type (THFT) | M60 |
| Pitch TPI External (TPI Ext) | 48-32 Threads/" |
Product Features
| Family Description | 60° partial profile solid carbide thread mills with coolant holes in the large diameters, for internal and external threads. Single cutting edge, used for deep threads and where very long overhang is required. | Country of Origin | Israel |

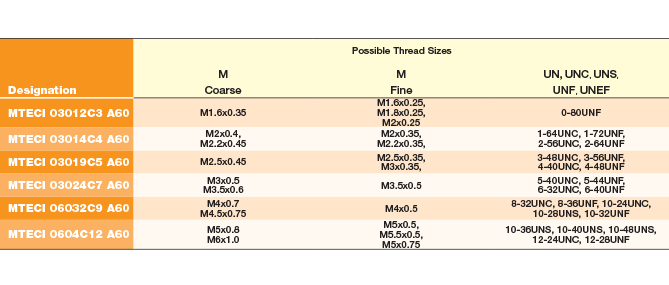

| Remarks | For (a) and detailed cutting recommendations, click on "More Info" DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H, External tolerance: 6g ANSI/ASME B1.1 - Internal tolerance: 2B, External tolerance: 2A |
Shipping Info
Package Weight
0.017
